Settlement System
Settlement Monitoring simplifed
A cutting-edge system for measuring horizontal and differential settlement along embankments, structures, and other linear assets.
Using distributed pressure sensors along a single tube, the ASP delivers near real-time data with high precision, enabling engineers to monitor settlement trends efficiently.
Its versatile design allows for easy installation in trenches, conduits, or embedded within structural elements, making it ideal for infrastructure, construction, and civil engineering projects.
Features
Settlement Monitoring Simplified
Quickly and cost effectively automate settlement or heave monitoring of your embankment, cutting, slope or structure.
Low Power
Osprey Measurement Systems’ advanced protocol allows us to carry out sophisticated measurements and data processing without compromising battery life. Our low power design offers compatibility with battery operated data loggers, without the need for an external power supply.
Easy to install
The ASP has been specifically designed to minimise complication during installation. It is orientation independent, meaning no special casing or alignment tool is required. The system is completely sealed so does not require an elevated reference location and with an 8 metre range, you can traverse even the most challenging topography.
Flexible Digital Commands
The Automatic Settlement Profiler’s digital output means only one signal cable is required to read an entire settlement system. Our broad compatibility allows you to seamlessly link each settlement system to a wide variety of data acquisition and telemetry devices.
Effortless Data Processing
Our laboratory calibration provides precision conversion from pressure to head. Once the profiler is installed, the system can be zeroed. A sensor or section is selected as the reference zone and all readings are then referenced to that zone and report in elevation difference in millimetres. This conversion can be done within the sensor, or through your own data management program.
How it works
The ASP comprises a series of distributed pressure sensors within a sealed hydraulically charged tube.
The pressure sensors report pressure in millimetres of head which is translated into differential elevation. Changes in differential elevation are referenced to a sensor or sensors beyond the zone of influence (or at an otherwise known elevation) and reported as settlement or heave of your site.

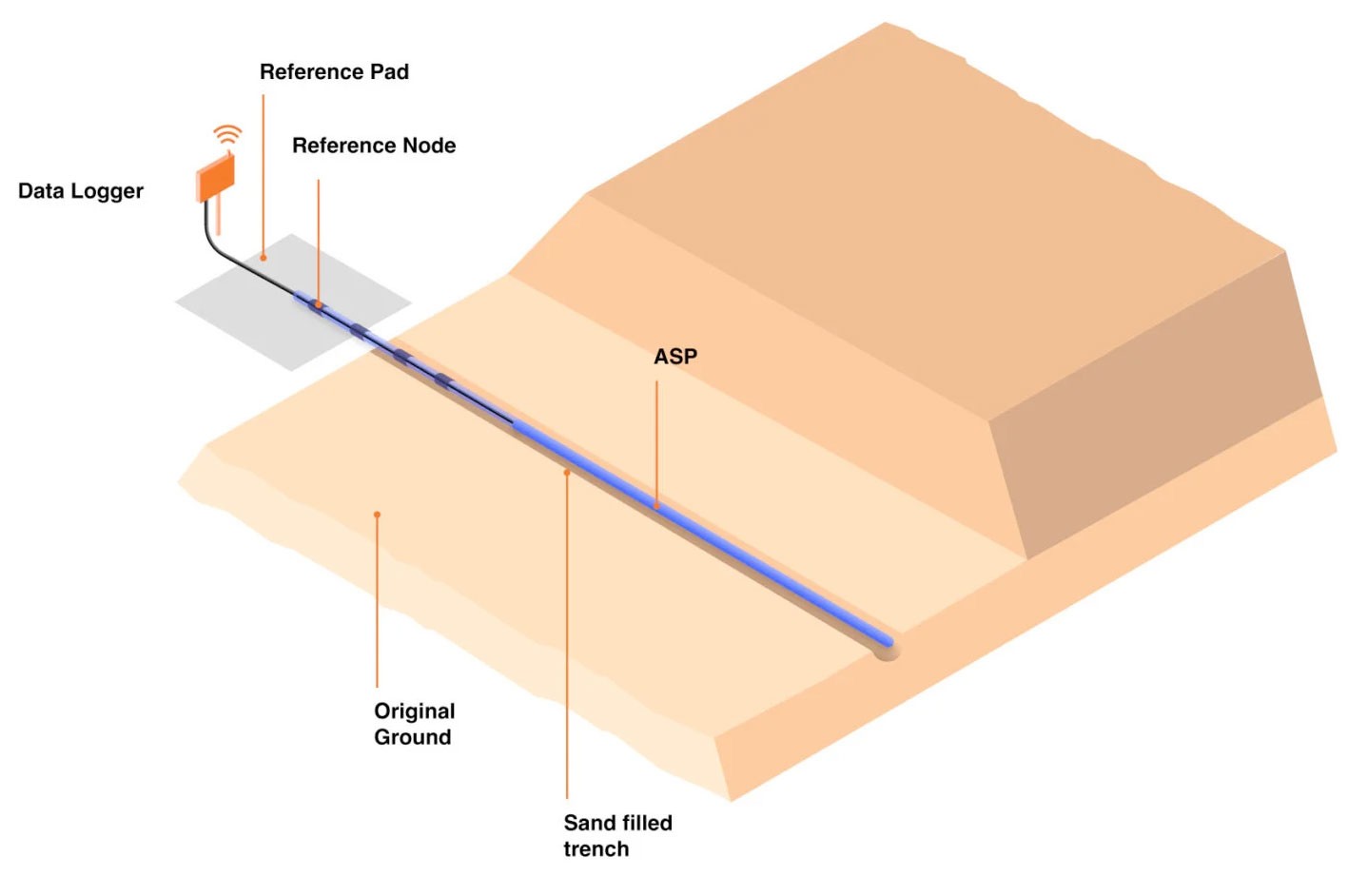

The system can be buried directly in a trench, installed within a conduit, bracketed to a wall or cast in concrete. It is ideally suited to retrofitting in existing profilometer access tubes.
The Automatic Settlement Profiler is available from 25m to 125m lengths, with sensors at 1m, 2.5m or 5m intervals. Where necessary, these can either be coiled to reduce length, or extended using a second or multiple additional systems for longer applications. Where multiple systems are used, an overlap section allows transfer of reference along the chain. Check out our application notes or speak to one of our engineers for more details.
Specifications
Dimensions
25mm Ø, 1-145m length. Coiled diamater 1000mm
Material
Stainless Steel end pieces, MDPE pipe
Operating Temperature
-5°C to 35°C
Weight
430g/m430g/m
Range
5m max differential elevation
Resolution
±0.01mm
Precision
±1mm
Communication
RS485, Modbus RTU
